1080p WiFi Camera Computer Home Remote Monitoring With Microphone Network Camera

Brand Name : HCVsight

Model Number : HCW-CM183

Place of Origin : Shenzhen China

MOQ : negotiable

Price : negotiable

Payment Terms : T/T

Supply Ability : 100000/ pieces/month

Delivery Time : 2-3weeks

Packaging Details : Anti-static bag in Paper box(110mmx93mm41mm)

Pixel : 3MP

color : black

Product size : 18mmx42mm

Lens Angle : 90°(customizable)

Frequency Operating Voltage : 12v

Connection Mode : WiFi

Microphone : support

Contact Now

1080p WiFi Camera Computer Home Remote Monitoring With Microphone Network Camera


Support cloud storage and network cameras with SD card slots

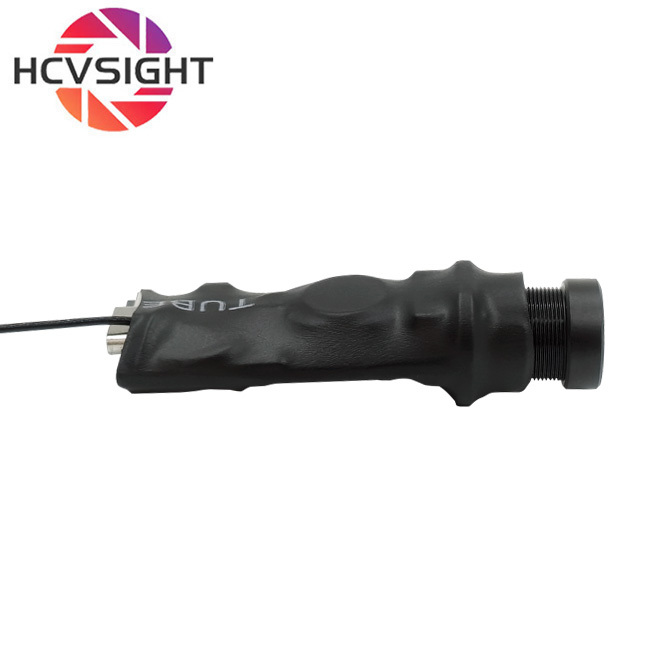

HCW-CM183 is a high-performance WiFi camera suitable for remote monitoring of devices such as computers and Android. With an ultra compact size of 18×42mm, it redefines the visual solution for space constrained scenarios. Equipped with a 2-megapixel high-definition sensor and a professional grade 3.6mm distortion free optical lens, it provides a precise 90 ° field of view, ensuring that the geometric accuracy error of the image is less than <-1.0%. Supports WiFi H.264/H.265) and wired charging interface, built-in high-sensitivity microphone for synchronous audio collection, cloud storage and SD card slot.


Specifications

sensor 1/2.9"
Pixel 2MP
Compression format H.264/H.265
Frame rate 1920X1080@ 25fps
Audio support
Power frequency working voltage DC 12V

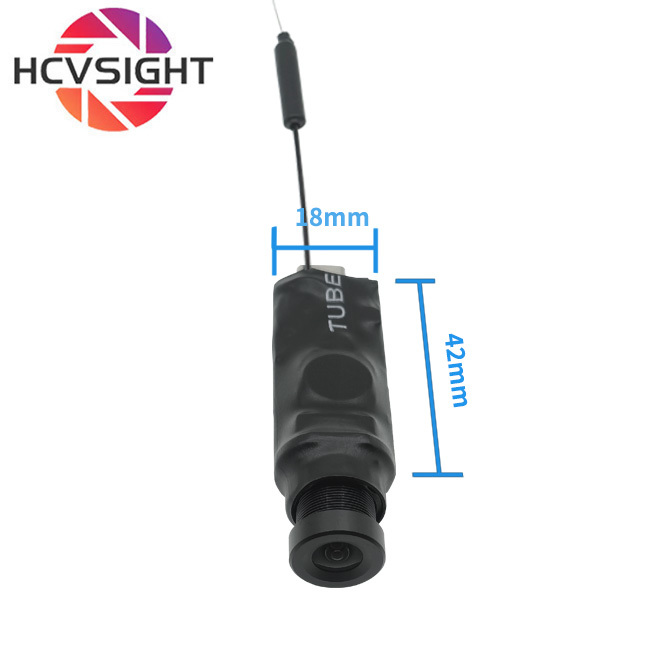

Product size 18mmx42mm
white balance Automatic
working temperature <70°
Power consumption 0.25w
model HCW-CM183
Signal Network signal
Lens F.NO: 3.0mm
Focal length:2.2
Distortion: <-1.0%
Component:4E+IR
Angle: D=90° H=83° V=55°
Chip type COMS


Core functions of the product


1.Cloud storage+local SD card dual backup: One click synchronization of cloud and local video recording through App/SD card, supporting dual backup locking for abnormal events.
2.Industrial grade high-definition imaging: 2 million pixel ultra clear image quality, with a pixel density 50% higher than 1080P, accurately capturing device textures, PCB solder joints and other details.
3.Micro size: 18×42mm, can be directly embedded into equipment panels and robotic arms. Built in microphone: supports two-way audio communication and runs continuously 24/7.

4.3.6mm undistorted lens: adopts non spherical lens and low distortion optical design, with edge distortion rate<-1.0%, solving the pain point of image deformation in industrial measurement.


Professional customized services


We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.

1. Lens customization: specific focal length, field of view angle, distortion control.
2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
3. Cable and Interface: Customize cable length and interface type (such as USB and Android).

4.Customized services: USB camera, AHD camera, CVBS camera, wired network camera, wireless wifi camera, etc.

5. Pixels: 1mp, 2mp, 4mp, 5mp, 8mp, 12mp, etc. The highest pixel reaches 12 million.


Camera application field


Industrial automation and machine vision, precision equipment status monitoring, security monitoring, embedded intelligent access control/attendance systems, miniaturized concealed monitoring equipment, vehicle mobile monitoring, smart home security, endoscope assisted imaging, laboratory equipment monitoring, vehicle driving recorder (DVR), small traffic monitoring equipment, intelligent retail terminals, drone/robot visual perception, education/conference system cameras, various embedded devices that require compact visual solutions, Advertising machine, all-in-one machine, intelligent electronic scale, automatic welding equipment, fire water gun, external law enforcement instrument, external camera for Android phone, computer camera, high-speed camera etc.


Support and Services:


Our camera products provide comprehensive technical support and services to ensure you get the best experience. Our expert team is always available to assist you with any questions or concerns regarding our products.

We provide the following technical support and services:
Online product documentation and user manuals
Provide technical support via email or phone
Repair and replacement services
Customized solutions tailored to specific needs
Our goal is to provide you with the highest level of customer satisfaction and support. If you need any assistance while using the camera product, please feel free to contact us at any time.
